Full Colour Indoor Transparent Glass Led Display Screen With 500*1000mm Cabinet
1.High brightness which is adjustable to meet the needs of various working environment sufficiently.,
2.Soft mask and protection pillow to protect both players and the led screen itself.
3.Angle adjustable: Large viewing angle covers the majority of audience and cameras: Getting noticed, endless commercial value.
4.All raw materials go through the strictly testing of high/low temperature and high humidity, anti-ultraviolet rays, anti-corrosion.
5.Applications: Especially applicable for football stadium / cricket stadium and other sports fields.

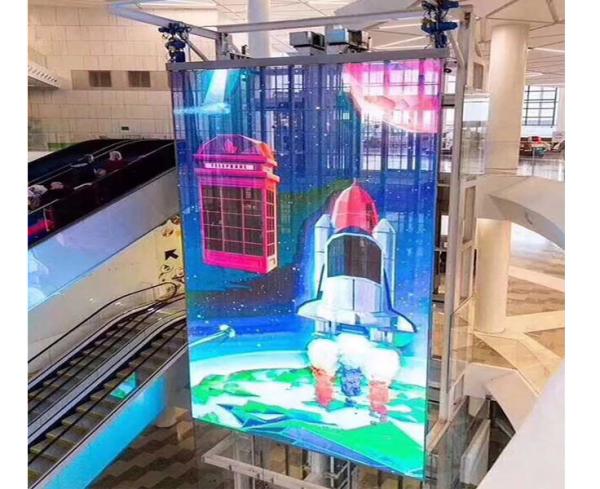

6, Any building with glass wall. Such as shopping mall, 4S store, jewelry store, clothing store, watch store, theatres, hotels, airport, museum, etc
Supply Ability
Supply Ability: 400 Square Meter/Square Meters per Month.
Packaging & Delivery
- Packaging Details
- LED module and accessories hard carton package
Flight case and wooden case package for cabinets.
- Port
- SHENZHEN CHINA
- LOGO
- Acceptable
- Lead Time :
-
| Quantity(Square Meters) | 1 - 100 | >100 |
| Est. Time(days) | 25 | To be negotiated |
-
Technical Specification:
| Pixel pitch(mm) | 7.81-7.81 | 10.42-10.42 |
| LED lamp | Indoor SMD2727 | Indoor SMD3535 |
| Density(Pixel/ m) | 16384 | 9216 |
| Module size(W×H)(mm) | 250mm*250mm | 250mm*250mm |
| Cabinet Size(W*H)mm | 500mm*1000mm | 500mm*1000mm |
| Cabinet raw material | Acrylic, aluminum |
| Weight(kg/pcs) | 15kg/m | 14kg/m |
| Transparent rate | 65% | 70% |
| Brightness | ≥4000nit | ≥4500nit |
| Refresh rate (Hz) | ≥1920Hz | ≥1920Hz |
| Driving scan | 1/6scan | 1/4scan |
| Max consumption | 400W/m | 400W/m |
| Avarage consumpution | 150W/m2 | 180W/m2 |
| Driving ic | MY9868 |
| Instalation | Hanging or fixed |
| Maintenance | Back side maintenance |
| Gray level | 256 |
| Working Voltage | DC 5V |
| Gray level(bit) | 12~16 |
| Protection level | IP43 |
| Viewing angel(°) | 140 |
| Input voltage | AC95V~240V |
| Working environment | Tem -10~40ºC Hum 10%~90 RH |
| Lifespan(Hours) | 100000 Hours |
LED display proejcts
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales supports and complete project solutions assistance for every customers.
1. All the products purchased from ANWELL company carries one year free replacements and product life supports.
A: Two years warranty period, including one year free replacement warranty period..
B: Product life supports and free project design.
2. Faulty products includes LED module, power supply, system cards and accessories will be returned to ANWELL factory for maintenance if necessary.
3. Complete project solutions services ranges from project design, installation, operation to future maintenance. Fast response capability to customers' request.
4. 24 hours aging test for every finished products before delivery, no tolerance in faulty products. Top quality will be well guaranteed.
5. Special offers available for preferred clients.
Product Tags:
|
|
P3.9 P10.42 Transparent Ice Display LED Glass Display Screen for Rental Stage Show Images
|
