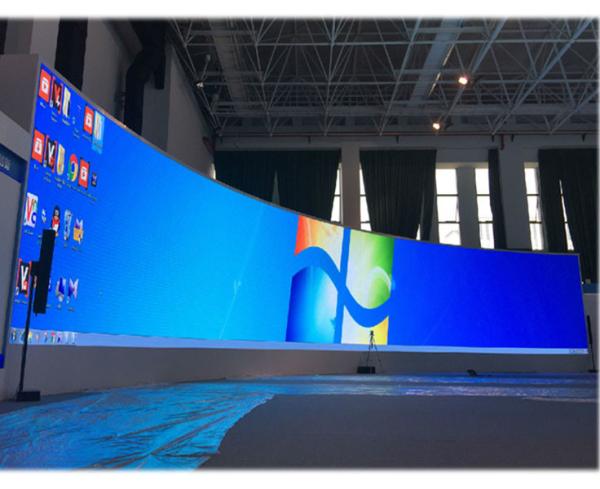

3 Years Warranty Full Color 3840hz Indoor Outdoor Curve Led Display Screen
Use as sky backdrop curtain:
Adopting multi-fuction U structure connector, and combining the special structure design of Magic Stage, curved shape within ±15° and light & thin features, Magic Stage can realize more creative curtain shapes.
When installing on ceiling, it can not only be matched by magic stage multi-functional steel frame, but also can be fit with various steel frames.
Use as stadium screen:
Adopting soft mask can protect the screen effectively when it gets impacted. And the top of the screen adopts soft cushion, which can protect the athletes when they collide with screen accidentally. Meanwhile, the bracket can be adjusted to ensure the best viewing angle.By constructed with magic stage multi-functional steel frame 75 ° to 90 ° degrees can be adjusted.
Use as dance floor:
Combine with magic stage own floor mask, realizing a broader viewing angle.
Adding PC material mask, combine with special absorbing equipment, which will be more convenient for taking out cabinet.LED resolution reaches 43264 dots/2, with 160°viewing angle.
Outdoor screen for indoor use:
For Magic stage outdoor screen, when its brightness decrease to indoor use, the gray scale performance is still intact, keeping high image layered and bright-colored.For common outdoor screen, when its brightness decrease to indoor use, the gray scale will be seriously damaged, and not able to show image details.
Technical Specification:
| Pitch | 2mm |
| Density Of Pitch | 250000dots/m2 |
| Module Resolution | 128 dots x 64 dots |
| Module Size | 256mm x 128mm x 0.8mm |
| Weight of Module | 0.2kg |
| Arc of Bending | Centre ≤120°, |
| Diagonal≤120°, |
| Suggestion Arc Bending≤90° |
| |
| Time of Bending | <1000 times |
| Driving Mode | Current Driving |
| Scan Mode | 1/32 Scan |
| Working Voltage | DC5V±10% |
| Max Current | 5A |
| Power Consumption(MAX) | 25W |
| Interface of Power supply | VH4 |
| Interface of Signal | Hub75 |
| Brightness | ≥800cd/m² |
| Color of Temperature | 9000±500K |
| Working Temperature | -20 °c-60°c |
| Best View Distance | >2m |
| Grade of Gray | ≥14bit |
| Refresh Rate | ≥1920Hz(According to Control Arrange) |
| View Angle | Horizontal 120° |
| Vertical120° |
| Control Range | Wide 128pixels, |
| Height Max 256pixels |
| Lifetime | ≥50000 Hours |
| Brightness Adjustable | 0 to 255 Grade |
Pre-sales supports
1. We offered technical advice to you before buying our products.
2. Help you to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our your specific usage.
After-sales service
1. We promise you more than one year warranty service!
2.We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you.
3. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.
Indoor and outdoor LED rental display proejcts
Warranty Terms
ANWELL team could provide dependable pre-sales services, post-sales supports and complete project solutions assistance for every customers.
1. All the products purchased from ANWELL company carries one year free replacements and product life supports.
A: Two years warranty period, including one year free replacement warranty period..
B: Product life supports and free project design.
2. Faulty products includes LED module, power supply, system cards and accessories will be returned to ANWELL factory for maintenance if necessary.
3. Complete project solutions services ranges from project design, installation, operation to future maintenance. Fast response capability to customers' request.
4. 24 hours aging test for every finished products before delivery, no tolerance in faulty products. Top quality will be well guaranteed.
5. Special offers available for preferred clients.
Product Tags:
|
|
3840hz Indoor P4 Curve Led Display Screen Mbi5124 Drive IC Images
|
